SKU: SK6W-79

Part Number: 5410940B

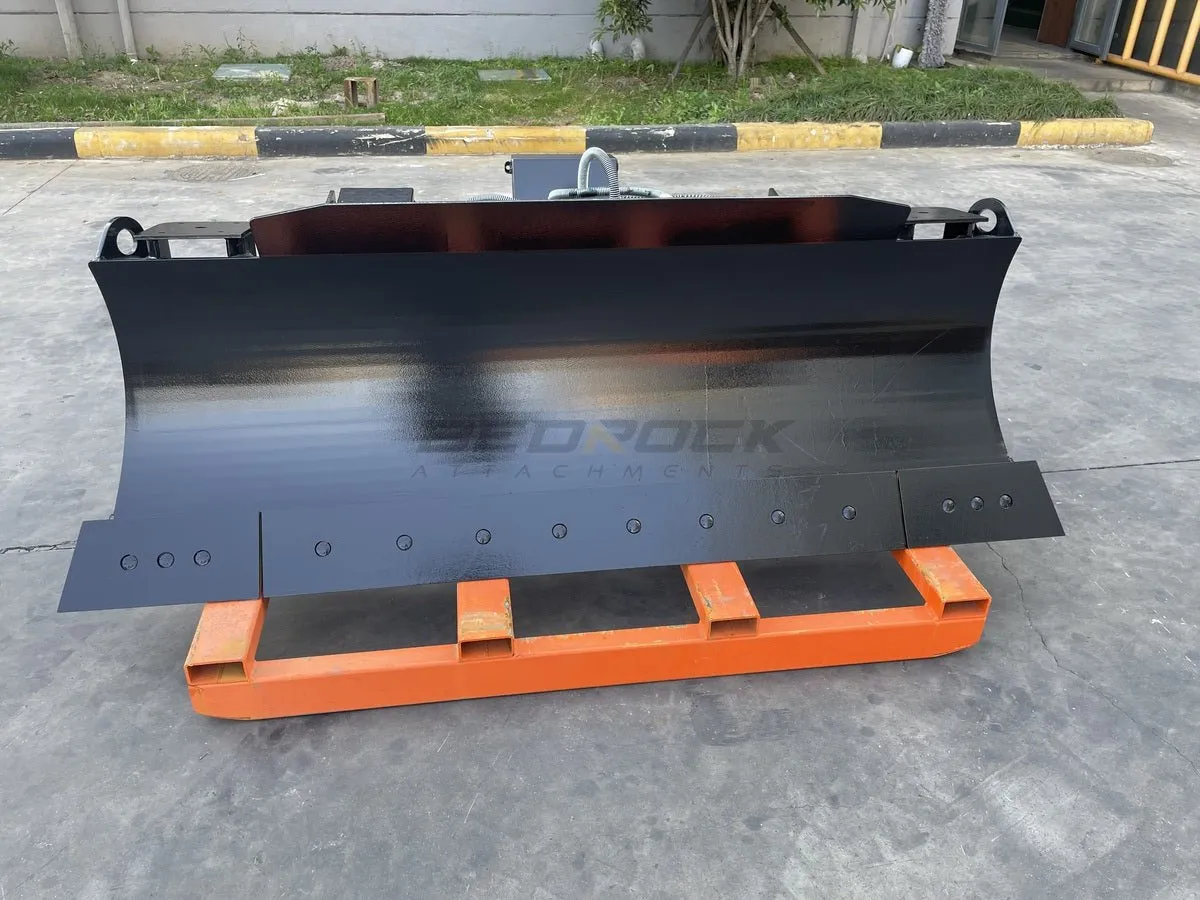

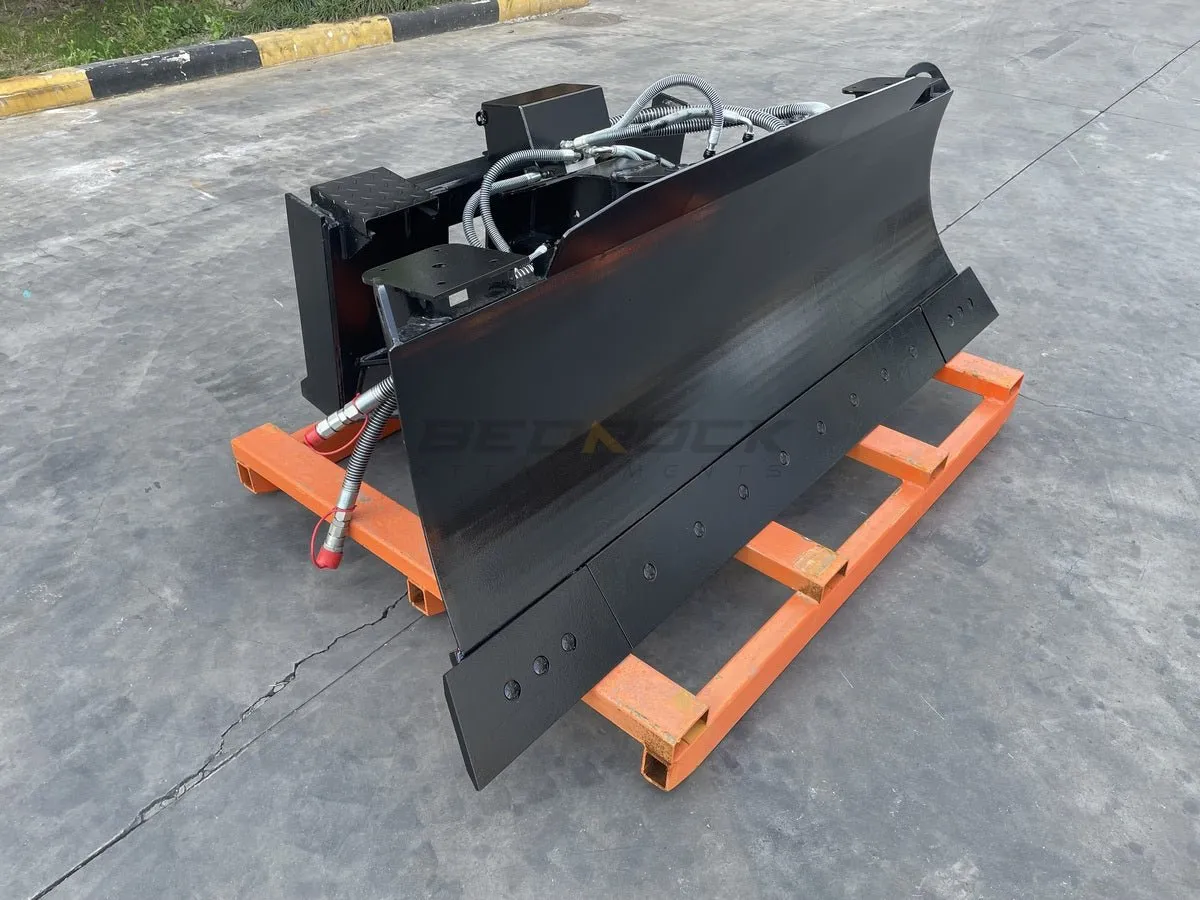

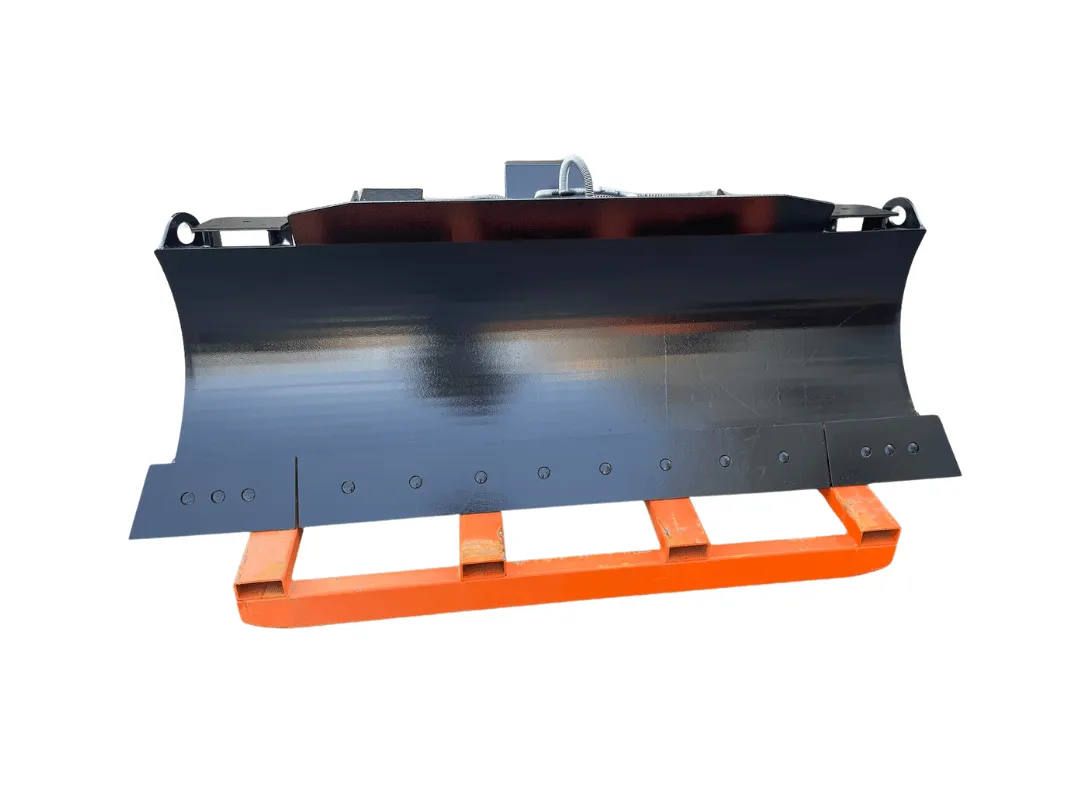

The heavy-duty VPAT blade is engineered to provide simultaneous tilting and angling capabilities.
The angled-end bits enable flush cutting against vertical surfaces when the blade is fully tilted.
It features a reversible, replaceable bolt-on cutting edge.
A serrated weld-on step ensures safe entry and exit from the machine cab.

Specifications:
Full Blade Angle Right/Left of Center: 30 Degrees
Required Hydraulics: Standard Flow
Cutting Edge Thickness: 0.6 in
Tilt Angle Range /- :10 degrees
Optimal Hydraulic Flow: 42-86 L/min(11-23gpm)
Optimal Hydraulic Pressure: 145-235 bar(2100-3400 psi)

Weight: 1082 lb
Overall width:79in
Overall Height: 25.1 in
Blade Height: 24.4 in
